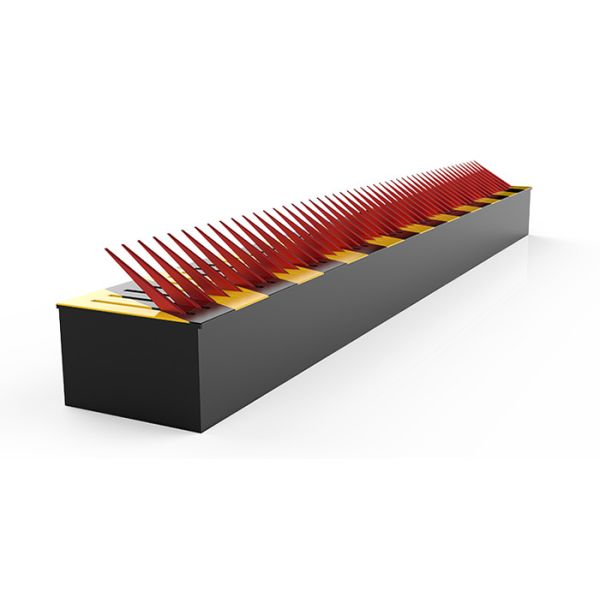

Flush Mounting Wireless Remote Control Tire Killer Barrier With
Manual Release Device
Product introduction:
100% duty cylce - designed for continuous and frequent use. Power
is supplied from a 220V or 110V power supply as standard.
Tire killers can be interfaced to any access control systems.
Traffic Light System is optional. We recommend that tire killer
barricades are used in conjunction with a drop arm gate.
Control System
Control electronics utilized in tyre killer is PLC controlled.
Motor is driven by a contactor and protected by a thermic breaker.
The low current voltage required by the system is supplied by a
switch mode power supply. There is a fuse for every component in
the system. All the cables running in the system are colour coded
and numbered to ease tracking. There is a control keyboard in the
power group as well as the desk-top one for the guard room.
Construction and Drive Unit
Main mechanical elements forming the construction are heavy duty
12mm top plate This sophisticated mechanical design enables the
tyre killer to withstand 60 tons of axle loads, besides, in case of
crash, linkage bars transmit the impact directly to the foundation,
therefore help to protect mechanism. A cushioned cylinder powers
the road blocker up as it pivots on multi-sealed bearings. All the
parts painted to yellow and black, in order to prevent rusting.
Accessories (Optional)
Flashing or red/green traffic lights
Remote control receiver, transmitter
Safety photocell, stand and casing
Inductive loop detector
Drainage pump
Card reader system
Specifications:
| Frame Material | A3 steel |
| Surface treatment | Paint with reflective stripe |
| IP | IP68 |
| Standard color | Black and yellow, Red and white |
| Length | 1m to 6m or Length On Request |
| Width | 700mm |
| Height from ground | 70~110mm |
| Min weight capacity | 60T |
| Blade height | 150mm |
| Working environment | -40℃~+70℃ |
| Control mode | Wireless Remote |
| Remote Control distance | ≤30M |
| Up/Down speed | 2s |
| Emergency Manual Lowering | Yes |
| Connection Line to control Unit | 10m (Max Length. 100m) |
| Voltage | 220V/110V- 50/60Hz |
Production Photo of tyre killer:
Why choose our hydraulic tire killer?
Control unit adopts PLC programmable controller,which can be a
variety of different function models to meet the different needs of
different users on function.
- Unique structure & design
The core part of its unique design for the unit and mechanical
power can effectively pass the mechanical energy to the drive
unit,which is efficient.
Power failure or other emergencies, you can manually descent the
cover plate of the road blocker to leave a clear channel letting
the vehicle access,which is stable and reliable.
Good environmental protection and energy saving,low
consumption,lower failure rate,longer service life reduced the
maintenance costs. In addition, the installation and maintenance is
more convenient and quicker by using untraditional mechanism
design.
