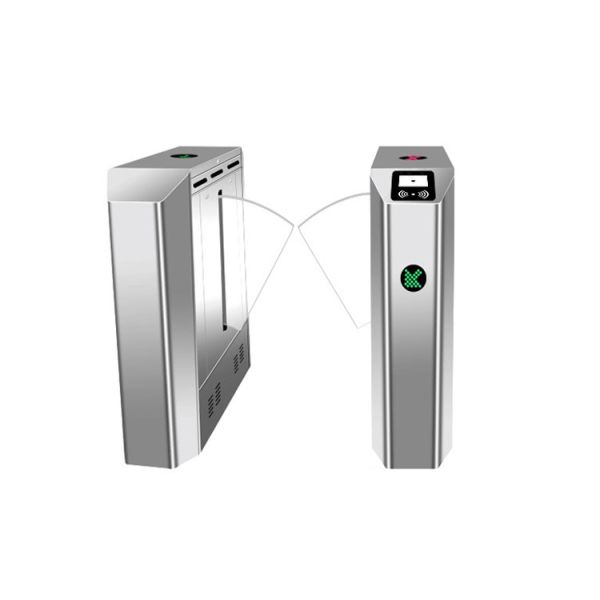

COVID Certificate QR Code Pass Waist Height SUS 304 Retractable
Flap Barrier Turnstile
PRODUCT DESCRIPTION
A flap barrier turnstile is used when both heightened security and
electronic optical turnstile access control are desired.
These turnstiles provide a barrier to entry with a very pleasing
and inviting appearance. A flap barrier turnstile is often
used in office buildings and reception areas, lobbies, modern
subway and transit stations, and other high-end building
entrances.
Access control integration
Can be integrated with all kinds of access control systems.
Anti-punch, the barrier will not close if it detects people
inside the passageway. Anti-tailgating, it allows only one person
to pass for an authorized card presented.
TECHNICIAL SPECIFICATIONS
Name | Automatic flap barrier gate |
Type | Retractable flap |
Brand | SINOMATIC/OEM |
Housing Material | SUS 304 Stainless Steel |
Function | Pedestrian Access control |
Flap Material | 10 mm thickness Acrylic |
Dimension | 1200*300*1000mm |
Net Weight | 60kg/pcs |
Passage Width | 600mm (One passage) |
Passing Direction | Single directional / Bi-directional |
MCBF | 5 million |
Cabinet Thickness | 1.2-1.5mm |
Power input | AC100V~240V; DC24V |
Pass speed | 30-35 p/m |
Driving voltage | DC24V |
Driving mode | Brushless motor |
Communication interface | Dry Contact |
MAIN FUNCTION AND FEATURES
1. Fault detection and alarm functions, easy to use and
maintenance.
2. The running status can be programmed and controlled with the
built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in
the reset process, motors will stop
working automatically within the prescribed time and reset again
after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically
until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within
the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user
automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers,
bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on,
complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse
intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Application
Sinomatic full automatic flap barrier gate are widely used in the
following sites:
- Banks, insurance companies
- Governmental and institutional establishments
- Office buildings, registered offices, administrative sites...
- Schools, universities and colleges
- Sensitive sites : military, nuclear, pharmaceutical, computer
centers...
- Airports
