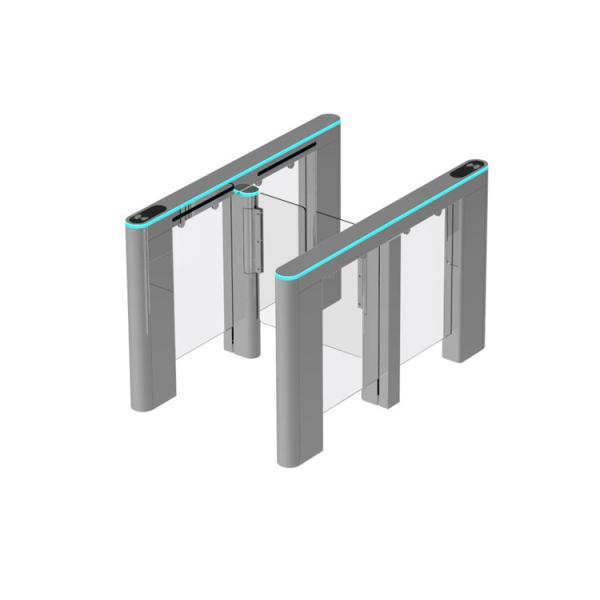

    AC100V Pedestrian Barrier Gate LED Indicator 10mm Thickness Swing

    Ask Lasest Price
    Brand Name : SINOMATIC
    Model Number : SN-HSG01
    Certification : CE/ ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500 pcs per month
    Delivery Time : 5-10 working days after payment received
    • Product Details
    • Company Profile

    AC100V Pedestrian Barrier Gate LED Indicator 10mm Thickness Swing

    High End Factory Price Pedestrian Fast Lane Swing Panel Speed Gate


    Product description


    Swing turnstile Speed Gate is the intelligent access management produced by our company after several years R & D,

    this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and

    writing equipment.


    It has fault self-test and alarm prompt functions, which is convenient for users to maintain and use;

    It has anti-clip and anti-collision functions, when the obstacle is encountered during the reset of the swing arm, the motor

    automatically stops working within the specified time, and resets again after the default delay, and the force is small.


    It has an anti-shock function. The swing arm is automatically locked when no open signal is received;

    It has one-way and two-way pendulum functions, which can realize the control of the entry and exit of personnel in one

    direction or two directions;



    PRODUCT FEATURES


    1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more

    accurate brake arm automatic control ability.


    2. Smoothly Running, small noise, simple and reliable restructure.


    3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable.


    4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, also can connect the

    bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system

    integration.


    5. Control panel with counting function, LCD/LED display function (optional)


    6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.


    7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.


    8. Sound and light alarm function: including illegal break-in, trailing alarm.


    9. Anti - impact function, the flap automatic locked without receiving the open signal.


    10. with automatic reset function, open the gate, the system will automatically cancel the user's access authority if the

    pedestrians no going through in the set time, automatic reset in 5 seconds after open.


    11. The barrier arm automatically unlocing and rotating when power off, automatically locked when power on


    12. Available connetion with access control system, consumer systems, electronic ticket system biometric system static

    tester and other equipments.


    13. Unique two-direction anti-reverse function


    14. Single-direction or Bi-direction control pedestrians access. 15. Available for remote control and management directly

    by computer.


    DETAIL SPECIFICATIONS


    Model
    SN-HSG01
    Case Material
    SS304(1.5mm, 2.0mm optional)/Baking varnish
    Barrier Arm Material
    Transparent Acrylic(Color Optional)
    Production Process
    CNC Laser Cutting
    Size
    1200*150*1000mm(Customization acceptable)
    Power input
    AC100-240V,50/60Hz
    Operation voltage
    DC24V, 3A, Power: 40W( Servo Motor Optional)
    Electromagentic
    Duty Cycle 100%
    Passage Width
    600mm(Customization acceptable)
    Passage direction
    Single directional/Bi-directional(Optional)
    Operating time
    1S
    Throughput Rate
    30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
    reset Time after Power on
    3S
    MCBF
    5,000,000 Cycles
    Automatic Reset Function
    Automatically locked within set time(Time Adjustable)
    LED Indcator
    Yes
    Operation Humidity
    0~95%(No Freezing)
    Operation Temperature
    -10℃~+50℃
    Operation Eenvironment
    Indoor,Outdoor(Shelter)
    Protection Level
    IP45
    Communication Interface
    Standard RS485 interface, distance ≤1200 meters
    Input Interface
    Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
    Input Interface
    Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

    PRODUCT Application


    Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

    recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of

    staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent

    community, enterprises and institution that need intelligent access management.


    FAQ


    1. What is your products biggest advantage?
    -------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

    2. What is your flap gates opening and closing time ?
    -------- <=0.4s .


    3. What is the Swing barrier gate Working environment ?
    -------- They can be used indoor and outdoor(with shelter)


    4. Can I customize it ?
    -------- Yes, Welcome . We are the manufacturer , We are welcome OEM .


    5. What's you warranty?
    -------- 1 year time warranty .
